Bus control system for machine tool truss manipulator

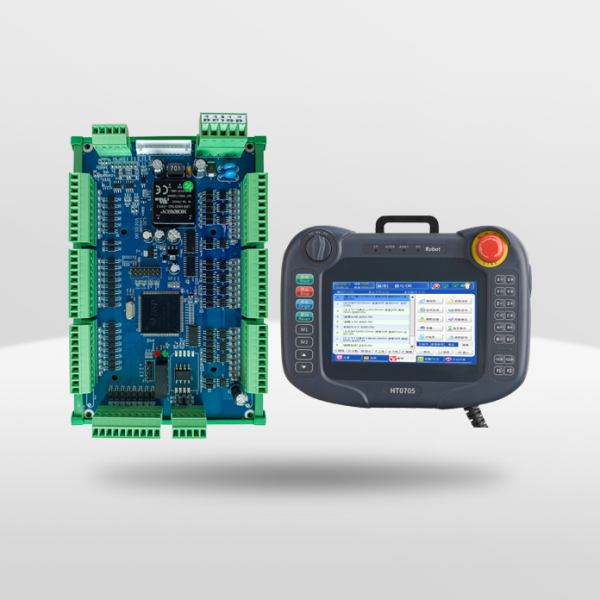

The Lavichip L30 control system is a bus control product for machine tool truss robotic arms, suitable for standard models. Supports CAN bus servo, supports absolute values, and supports dual machine tools. Linux operating system+QT application teaching tool, with a beautiful interface, customizable skin color, and small tools such as calculators.

Category Tags ,
Manual download
Get a quote

Product Details

》A simple and intuitive graphical operation interface that supports user customization and allows for easy manipulation;
》Each program is designed with independent reference points and stacking parameters, and switching between different processing orders only takes 1 second;
》Massive program storage space can store tens of thousands of processing programs, making it easy to meet the needs of small batches and multiple varieties;
》Thousands of complete manual operation and parameter modification records, with well documented problem handling and analysis.

Specification Parameter
Display screen 7-inch TFT color screen resolution 800 * 480
Touch founction Support
Communication of teach pendant RS422 communication
Communication of IO expansion board CAN bus communication
IO expansion board 1 board
Number of IO expansion ports 16 optocoupler inputs + 16 transistor outputs
USB System upgrade, parameter and program import and export can be performed via USB
Communication of servo CANopen bus communication
Axis Maximum 6 axis
Servo communication speed 1Mbps
IoT RS485(optional)
Visual communication RS485(optional)
Input 32 channels of optocoupler input,Optocoupler isolation
Input working voltage 24V
Output 24 channels of transistor open-drain output, optocoupler isolation
Transistor output current Open drain output 500mA
Keyboard 24 matrix membrane buttons
Working voltage DC wide voltage 18V -36V
Operating temperature -20~70 degrees centigrade
Storage temperature -40~85 degrees centigrade
Working humidity 10%~90% (non-condensing)
Arm Supports single arm and dual machine tools
