CANopen Injection Molding Robot Control System

The CANopen injection molding robot control system supports 12 axis servo control and is compatible with most CANopen servos in the market, with strong compatibility. Unique corner trajectory control algorithm invention patent technology. Control accuracy of 0.01mm, communication speed of 1Mbps

Category Tags ,
Manual download
Get a quote

Product Details

》Can adapt to most CANopen servos on the market, with high compatibility;
》The mainstream bus technology in industrial communication has high reliability and strong anti-interference ability;
》Supports 12 axis servo control, supports multi stage variable speed, light handling, and other functions;
》Unique corner trajectory control algorithm and patented technology, making multi axis operation and connection smoother;
》Simple wiring, labor-saving, convenient servo debugging, based on bus technology, can adjust and monitor servo parameters in real-time;
》Position control accuracy of 0.01mm, communication speed up to 1Mbps, communication distance up to 40m；
Market positioning: Universal low-cost bus solution with high control accuracy, exclusive communication protocol for Langyuxin；

Classification Name CANopen controller system for injection moulding manipulator




Product configuration

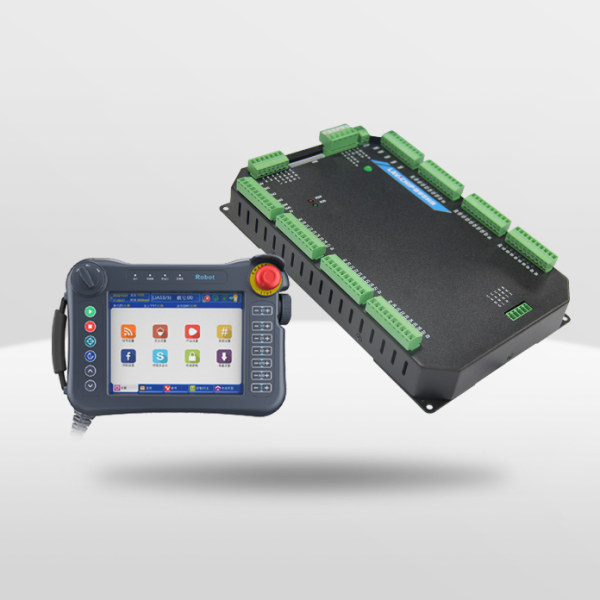

 Form HT0806/0804 Teach pendant+CIMC06-2 main board+AIMC20 IO board（optional)
Switching power supply  150W-24V
Cables 12-core 5-meter aviation plug shielded connection cable; 1.2-meter aviation plug shielded adapter cable
Accessories Injection molding system manual, buzzer HYD-24V, iron double hook, 8-core 0.8m network cable, 8-core 0.4m network cable


















System information

 Storage flash：4GB
Display 8-inch TFT color screen, resolution ratio 800*600
Keyboard Physical membrane buttons, key life of 100,000 times
Communication of teach pendant RS422 communication
Communication of IO board CAN bus communication
Main board network interface RS485 communication
 Switch input of mainboard 29 channels of universal input + 7 channels of origin input(Optocoupler isolation, active low level, input current 5mA)
 Switch output of mainboard 16 transistor outputs (NPN type, optocoupler isolation, active low level, output current 500mA) + 5 relay outputs (normally open single contact, 220V/5A)
 Switch input of IO board 16channels
(Optocoupler isolation, active low level, input current 5mA)
 Switch output of IO board 16 transistor outputs
(NPN type, optocoupler isolation, active low level, output current 500mA)
Languages Support more than 8 languages
Alarm analysis Two intelligent alarm tips can help users analyze alarm problems (yellow alarm is warning information, red alarm is machine fault information)
Update Through the teach pendant, USB port upgrade software, you can brush the custom LOGO through the USB port
Control system CANoepn communication protocol，rated communiocation 1Mbps,precision
0.01mm, communication distance
40m
Arm Supports dual-arm function, or select main and sub-arms separately
