PRODUCT

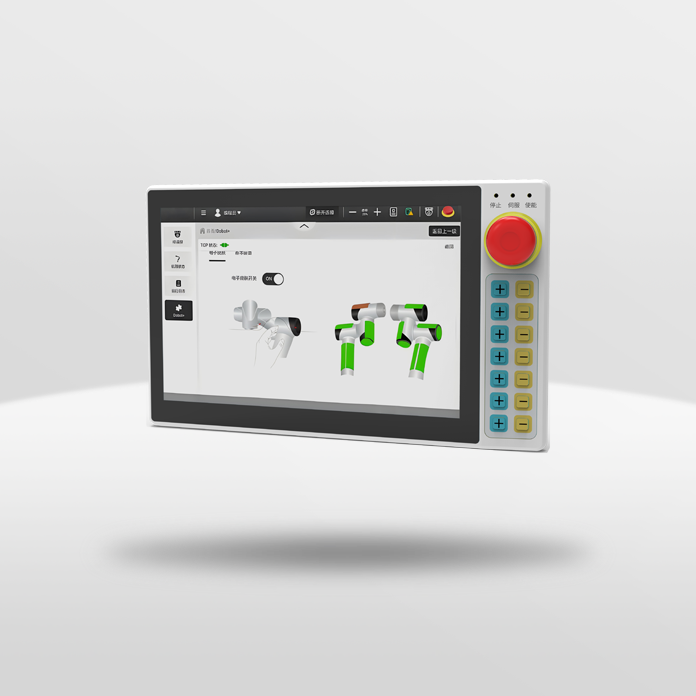

Collaborative robot teaching device
For our independently developed collaborative robot teaching device, the robot is programmed using the teaching device, and the motion details of the robot are clearly displayed to users through a high-definition touch screen, displaying 3D simulation graphics. All operations are completed by clicking on the screen, with strong human-machine collaboration.
Product Details
》10.1-inch TFT display screen, high-definition touch control, landscape structure design, supporting 3D animation display;
》Combining with QT interface development, it can achieve visual programming and fast drag instruction programming;
》Compared to industrial tablets, it retains physical buttons for quick and blind operation, reducing the probability of accidental touch;
》Compatible with both capacitive and resistive touch screens, providing multiple solution support.
| Specification parameters | ||
|
system specifications |
display screen | 10.1inch TFT Display, 1280 * 800 resolution |
| cpu | Tetrinuclear 1.2GHz/1.8GHz Max ARM CPU | |
| memorizer | eMMC 16GB；DDR4 2GB | |
| source | 24V DC power supply input, wide voltage range 18V-48V | |
|
Structure and reliability |
levels of protection | Dust-proof, waterproof, IP54 grade (front IP65) |
| decline | 1m height | |
| shake | Vibration test standard GB2423.10 | |
| environment | In line with the industrial application environment, the material has oil resistance and corrosion resistance | |
| weight | <1.25 Kg, without the wire material | |
| working temperature | -20℃～60℃ | |
| Working humidity | 10 ~ 90% RH (no condensation) | |
|
electrical function |
input voltage | 24V DC |
| Thunder blows waves | +/-2KV | |
| ESD | Direct discharge + / -4KV and indirect discharge + / -8KV | |
| burst of pulses | +/-2KV, 5KHz/100KHz | |
