Control System of Machine Tool Truss Manipulator

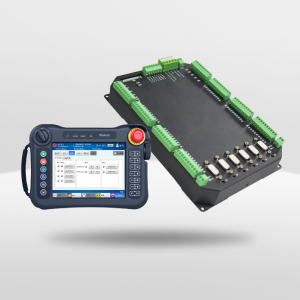

The DT550 drive control integrated machine tool robotic arm control system scheme has the advantage of being applied to the lathe loading and unloading truss robotic arm, stable and efficient, supporting 5 servo axes, and the system comes with relay output. 36 inputs, 21 outputs, supporting IO expansion.

Category Tags ,
Manual download
Get a quote

Product Details

》Safe and stable, mature drive control solutions
》Few fault points, no servo control line
》Space saving, small system size
》Easy to install, with one screw hole hanging and one lock
》Free selection, motor adaptable
Waterproof and oil proof design of the control system, stable and reliable; Efficient combination of drive and control, with an operational efficiency of over 10%.

Specification Parameter
Display screen 8-inch TFT color screen resolution ratio 800 * 600
Touch founction Support
Communication of teach pendant RS422 Communication
Communication of IO expansion board CAN bus conmmunication
IO expansion board 1 boards
Number of IO expansion ports 20 optocoupler inputs + 16 transistor outputs + 3 relay outputs
USB 20 optocoupler inputs + 16 transistor outputs + 3 relay outputs
Communication of servo Chip level internal bus
Axis 5 axis
Servo communication speed 100M
IoT 100M internet RJ-45 / RS485（optional）
Visual communication 100M internet RJ-45 / RS486（optional）
Input 36 optocoupler inputs
Input working voltage 24V
Output 16 transistor open-drain outputs + 5 relay outputs, optocoupler isolation
Transistor output current Open drain output 24V 500mA
Relay output current Contact output 220V 5A
Keyboard 20 matrix membrane buttons
Working voltage DC wide voltage 18V -36V
Operating temperature -20~70 degrees centigrade
Storage temperature -40~85 degrees centigrade
Working humidity 10%~90% (non-condensing)
Arm Supports 1 arm, 2 machine tools, supports double up and down.
