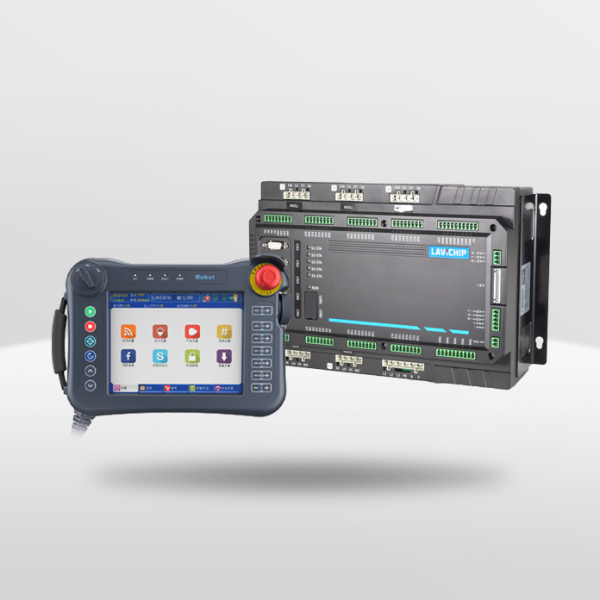

Drive Control Integrated Injection Molding Robot Control System

Designed for application in the truss manipulator industry, a highly integrated drive control integrated machine with built-in application logic and drive parameter one-stop settings, greatly saving user installation and debugging time.

Category Tag
Manual download
Get a quote

Product Details

Designed for application in the truss manipulator industry, a highly integrated drive control integrated machine with built-in application logic and drive parameter one-stop settings, greatly saving user installation and debugging time.

》The driving parameters are set through the human-machine interface menu of the teaching pendant, making the operation intuitive and easy to learn
》Adopting chip direct connection to internal high-speed bus communication, no need for external communication control bus, strong anti-interference performance, high efficiency and reliability
》Five axis integrated compact common busbar design, greatly saving installation space of electrical cabinets
》Integrate 36 switch inputs and 21 switch outputs
》Scalable external IO module, capable of expanding up to 120 external IO channels
》Reliable heat dissipation device design, low operating temperature of the entire machine, safe and reliable

Name 5 axis integrated drive and controller system for IMM
Model DS1M-5-553531-000
Teach pendant HT0806BIM HT0804BIM
IO board 1 7
Axis 3 3
Teach pendant with IoT Not support Support
Enable buttons Support Support
Keyboard Function keys: 20 keys, lifespan 100,000 times Function keys: 21 keys, lifespan 100,000 times
Working voltage DC24V
Display screen 8-inch FTF color screen, resolution 800*600
Input 29 channels of universal input + 7 channels of origin input(Optocoupler isolation, active low level, input current 5mA)
Output 16 transistor outputs (NPN type, optocoupler isolation, active low level, output current 500mA) +

5 relay outputs (normally open single contact, 220V/5A)
Control manner Internal bus
Communication rate 1Mbps
Languages English, Chinese
Update manner Updated by USB
Main board network interface RS485 communication interface
Expansion axis One CANopen  servo axis can be expanded
Communication with servo Internal Bus
Languages Support 8 languages
Update manner Update by USB
Main board network interface RS485 communication interface
Rated power S1:750W S2:750W S3:400W
Maximum power Supports  maximum power output of 1000W for a single axis
Regenerative braking External regenerative braking resistor
Usage environment Temperature：-20℃—60℃     Humidity：5%—80%
Monitor function Can monitor speed, current position, bus voltage, load rate, temperature, encoder multi-turn data, etc.
Protective function Overspeed, overcurrent, overvoltage, overload, abnormal braking, abnormal encoder position, position out of tolerance, etc.
