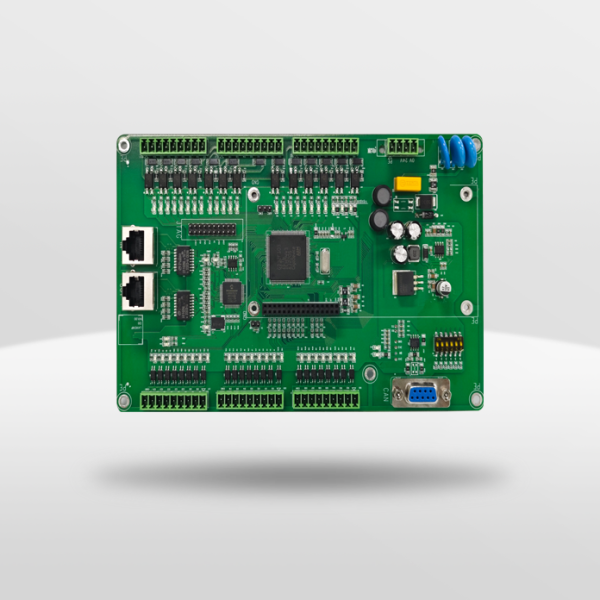

EtherCAT IO board

Name: EtherCAT IO board
Availability: InStock

EtherCAT IO board, 24 inputs and 24 outputs, widely used in joint robots, automation equipment, etc

Category I0 expansion board Tag EtherCAT

EtherCAT IO board, 24 inputs and 24 outputs, widely used in joint robots, automation equipment, etc

Specification	Parameter
Communication	CAN
Input	16 optocoupler inputs
Input working voltage	AC24V
Input and Output isolation method	Opto-couplers isolation
Output switching value	16 transistor open drain output
Transistor output current	Open drain output24V 500mA
Working voltage	DC24V
Working temperature	-20~70 degree
Storage temperature	-40~85 degree
Working humidity	10%~90%RH
Size	118mm*90mm
