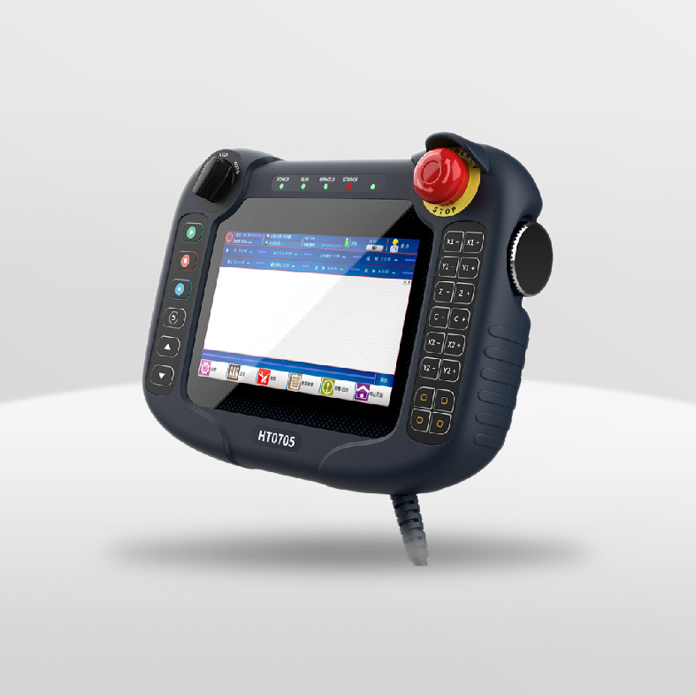

HMI-HT0705 (configuration )
HT0705 (Configuration HMI Series) is widely used in various automation equipment. Unlike traditional HMI, it has the characteristics of handheld mobility and buttons, supports secondary development programming, and allows users to easily learn and develop interfaces. Develop visual styles through configuration software to meet customized interface requirements. The production of the human-machine interface is entirely completed by the upper computer software, and the HMI can be downloaded to run the project.
Product Details
》Supporting second-generation development programming, users can easily learn how to develop interfaces through simple teaching;
》Mobile/Suspended Configuration Touch Screen;
》Customize physical buttons and status indicator lights according to customer functional requirements;
》Support convenient operation functions such as selection switches and encoder knobs, which can meet the application needs of different customers for touch screens;
》Safety emergency stop button to ensure safe operation;
》Industrial isolated power supply with strong anti-interference ability;
》Supports multiple conventional industrial communication buses with good compatibility;
》IP65 dustproof and waterproof design, suitable for use in oily and humid environments.
| Models | QT Teach Pendant | HMI Teach Pendant | VGA Teach Pendant |
| Master Chip | ARM CPU | ARM CPU | REALTEK |
| Internal Storage | 512MB DDR | 64MB DDR | / |
| Capacity | 4GB Flash | 128MB Flash | / |
| SD Card | Maximum support 32GB | / | |
| Display | TFT8inch Resolution 800X600 | TFT7inch Resolution 800X480 | TFT8inch Resolution 1024X768 |
| Touch Panel | Reinforced 4wire resistive touchscreen | ||
| Operational system | LINUX | ucOS | / |
| IDE | QT5.12 | Lavichip Studio | / |
| USB | USB2.0 | ||
| Keyboard | Customized 29 Keys | Customized 24 Keys | Customized 29 Keys |
| Indicator Light | 6 customized Indicator lights | 5 customized Indicator lights | 6 customized Indicator lights |
| Communication | RS485,RS422、 CAN,Ethernet | R5485,RS422,R5232 | RS232,VGA |
| Accessories | Emergency Stop Switch:1 pc;selection switch:1pc;Electronic Hand-wheel:1pc;Touch pen:1pc; Enabled switch(three position):optional | ||
| Working Voltage | DC24V/0.5A | ||
|
EMC |
ESD Direct Discharge+/-4KV;Indirect Discharge+/-8KV | / | |
| Pulse Group+/-1KV,5KHz/100KHz | / | ||
| Lighting strike and wave surge+/-2KV | / | ||
|
Reliability |
Drop:1m height drop | ||
| Anti-knock:10 ~25HZ(X,Y,Z Direction 2G/30mins) | |||
| Dust and water proof:IP65 | |||
| Operating Temperature | Temperature: -30° ~80° | ||
| Environment Humidity | Humidity:10 ~90%RH | ||
|
Product Material |
Outer Case:Oil Resistance, Fire Resistance | ||
| Cables: Oil Resistance, high foldable; high flexiable material can be optional | |||
