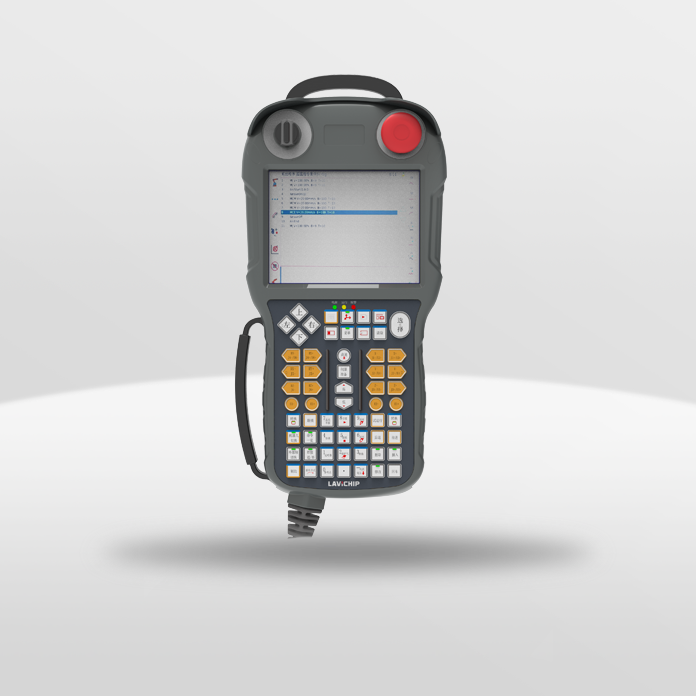

HN50 robot teaching pendant
For industrial intelligent manufacturing, we bring a wide range of robot teaching aids solutions. The HN50 series robot teaching device is suitable for the field of welding robots and other equipment. It is tailored to create a good teaching experience for users; The button layout conforms to blind operation habits and meets the needs of quick positioning. The function menu can be called with one click.
Product Details
》The teaching pendant is a QT human-machine interface with integrated drivers and QT libraries, supporting easy development through demo programs.
》There are many technical keys, and the function menu can be called with one click. The key layout conforms to blind operation habits. The left and right hand operation enable switches can be selected.
》Ergonomic design, structural perspective; Fully independent intellectual property rights, mature and stable software and hardware platforms.
》Supports multiple communication protocols such as Ethernet, RS485, RS232, CAN bus, etc.
》The teaching pendant product has a moderate size, light weight, less than 0.8 kilograms, and users can operate it for a long time without fatigue.
| Parameters | Welding teach pendant | |
|
Hardware Parameters |
Display screen | TFT 5.6inch |
| Resolution ratio | 640*480 | |
| LCD lifetime | 20000Hr | |
| Touch screen | 4-wire industrial resistance touch screen | |
| CPU | 1.2GHz ARM CPU | |
| Storage | eMMC; 4GB /8GB； DDR3; 256M / 512M，Max 1GB ，1GB capacity DDR requires commercial grade | |
| RTC | Built-in real-time alarm clock | |
| Communication bus | RS232/RS485 /Ethernet/CAN | |
| USB | USB HOST 2.0 | |
| Keyboard | 61 Customized membrane buttons | |
| Pilot lamp | 12 customized LED | |
| Selector switch | Three-way switch | |
| Enable switch | Three-stage double-contact enable switch, optional | |
| E-stop switch | Normally closed emergency stop, single contact / double contact optional | |
| Linkage cables | Standard configuration: WS28K16ZMQ-PS (Weapon) connector, 5m wire, wire material optional | |
|
Electrical specification |
Rated power | ＜5W |
| Input voltage | 18V - 36V | |
| Time allowed to lose power | ＜5mS | |
| SURGE | ± 2KV | |
| Group pulse test | ± 2KV | |
| ESD TEST | Contact discharge method 4KV，Air discharge 8KV | |
|
Reliability |
Working temperature | -20℃～60℃ |
| Storage temperature | -20℃～70℃ | |
| Ambient humidity | 10~90%RH | |
| Anti-seismic property | 10~25Hz（X / Z direction 2G/10 minutes） | |
| Height range | 1m | |
| Level of protection | IP54 | |
|
Mechanical indicators |
Mechanical structure | Engineering plastic |
| Overall size | 332*154*69.8MM | |
| Overall weight | ＜0.9Kg（without cables） | |
