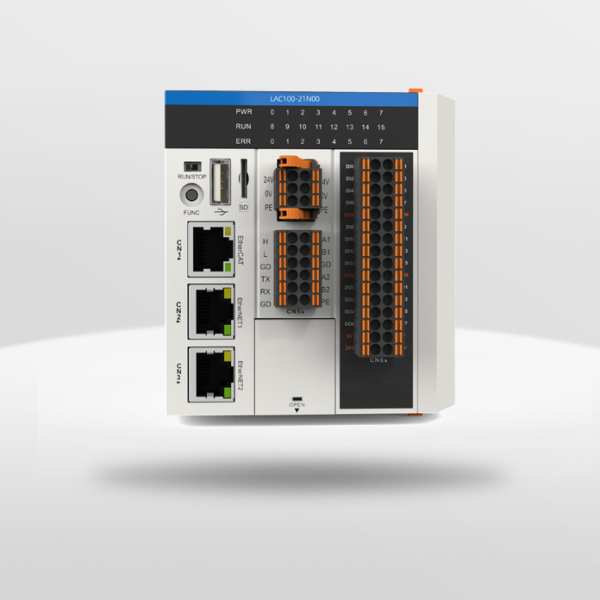

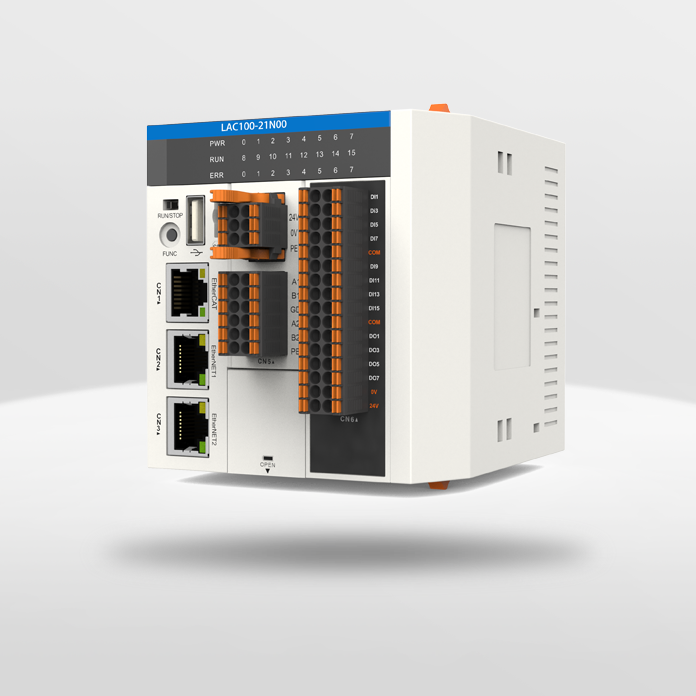

LAC100 Programmable Controller PLC

LAC100 adopts a modular structure design, which has the characteristics of rich functionality, high integration, excellent performance, high reliability, good scalability, and easy use. It can provide personalized solutions for different industrial fields. For industrial sites, it can be remotely rack extended and interconnected with third-party devices through various industrial field buses such as EtherCAT, Profinet, Modbus TCP, Modbus RTU, CANopen, etc. It can be widely applied in industries such as tunnels, transportation, water treatment, chemical industry, energy, heating, electricity, building materials, pharmaceuticals, and metallurgy.

Category Tags ,
Manual download
Get a quote

Product Details

Key Features of the LAC100 Programmable Controller PLC:

  •  Support third-party EtherCAT slave docking, flexible configuration, suitable for distributed and centralized control scenarios;
  • Supports maximum 32 axis EtherCAT bus motion control and up to 32 EtherCAT extended IO modules;
  • Supports EtherNet, CANopen, RS485, RS232 communication;
  • Support ontology I/0, 16 inputs, 8 outputs;
  • Electronic cam, electronic gear, multi axis interpolation function;
  • Power failure detection, power failure storage.
model LAC100-21N00
Power Supply Voltage 2 sets of 24VDC (-15%~20%)
Rated input current (excluding I/O current) 500mA
Rated power (excluding I/O) 12W
internal storage 1GB
Program capacity 128MB
data capacity 128MB
Keep variable memory when power off 256KB
Minimum task cycle 1ms
SD block Not open to the outside world
USB joggle 1xUSB2.0
gorge line 1XRS232
2XRS485
work environment Working temperature: -20°C~55°℃, working humidity: 5%~95%(no condensation)
Storage environment Storage temperature: -40°℃~80°℃, storage humidity: 5%~95% (no condensation)
levels of protection IP20
