PRODUCT

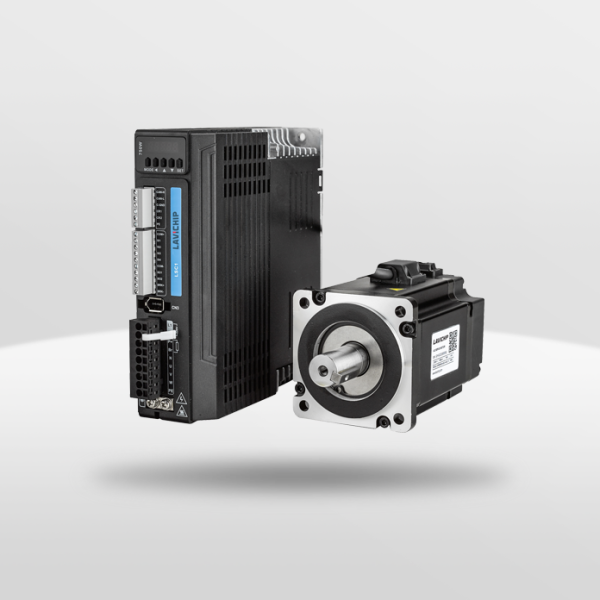

LS750W servo driver+motor
LAVICHIP LS series servo (CAN bus) is a specialized servo customized for robotic arms and other equipment, supporting incremental and absolute value motors, waterproof and oil proof aviation plug connectors, and reliable vehicle grade field control bus (CANopen bus communication). Supports dynamic braking, vibration suppression, and other functions. Simple application, strong adaptive ability, only need to adjust individual parameters.
Product Details
LAVICHIP LS series servo (CAN bus) is a specialized servo customized for robotic arms and other equipment, supporting incremental and absolute value motors, waterproof and oil proof aviation plug connectors, and reliable vehicle grade field control bus (CANopen bus communication). Supports dynamic braking, vibration suppression, and other functions. Simple application, strong adaptive ability, only need to adjust individual parameters.
| Model number | LSP-400 | LSP-750 | LSP-1500 | LSP-2000 | LSP-3000 | LSC-400 | LSC-750 | LSC-1500 | LSC-2000 | LSC-3000 | |
| Rated current (Arms) | 3 | 5.2 | 9.5 | 12 | 16.3 | 3 | 5.2 | 9.5 | 12 | 16.3 | |
| Motor power (W) | 400W | 750W | 1500W | 2000W | 3000W | 400W | 750W | 1500W | 2000W | 3000W | |
| Control mode | IGBTSVPWVM sine wave control | ||||||||||
| Regenerative braking | Built-in brake resistance (also be external) | ||||||||||
| Feedback mode | Bus encoder :R5485 protocol | ||||||||||
| Control mode | Pulse+Direction | CAN bus | |||||||||
| Communication function | Support RS232: ModBus protocol (RJ45 interface) | Support RS232: ModBus protocol (RJ45 interface) | |||||||||
| Support RS485: ModBus protocol (RJ45 interface) | Support RS485: ModBus protocol (RJ45 interface) | ||||||||||
|
Position |
Electronic gear ratio | 1 ~ 8388608/1 ~ 8388608 | 1 ~ 8388608/1 ~ 8388608 | ||||||||
| Maximum input pulse frequency |
500kHz(5V differential)200kHz(24V single-ended) |
||||||||||
| Torque limitation | Parameter setting | Parameter setting | |||||||||
| Operation display | 5 keys,LED5 digits with dots | 5 keys,LED5 digits with dots | |||||||||
|
Alarm function |
Overvoltage, undervoltage, overcurrent, overload, overheating, overspeed, main power input phase deficiency, regenerative braking state abnormal position deviation is too large, encoder feedback error, braking rate is too large, stroke limit, EEPROM error, etc | ||||||||||
