PRODUCT
Programmable motion controller

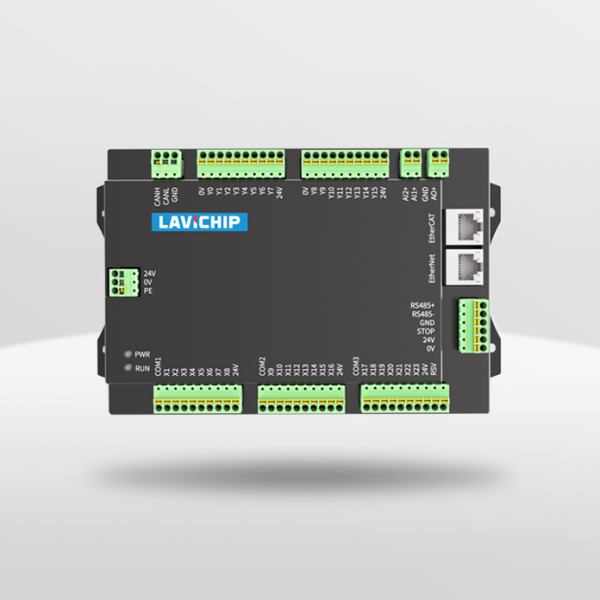

LAC200 is a universal programmable controller with motion control functions. This motion controller manages the servo and extends I0 through the EtherCAT bus, supporting the standard IEC61131-3 programming language. With its rich motion control functions, compact structure, stable performance, and ease of development, the LAC200 programmable controller is an ideal choice for a wide range of industrial automation projects. When used in conjunction with our HMI, this programmable motion control system can adapt to different process requirements, meeting the needs of users for independent development.
Product Details
Key Features of the LAC200 Programmable Motion Controller:
- Enables third-party EtherCAT slave docking, flexible configuration, suitable for distributed and centralized control scenarios
- Handles up to 32-axis EtherCAT bus motion control, with 64 EtherCAT slave stations
- Allows for EtherCAT expansion IO
- Compatible with EtherCAT, EtherNet, and RS485 protocols
- Supports Ethernet Modbus TCP with 23 inputs and 16 outputs
- Features electronic cams and gear functionalities
- Includes 2 analog inputs (12-bit) and 1 analog output
- Facilitates multi-file and multi-task programming through instruction teaching.
- Detects power failures and ensures data storage.
- Executes electronic cam, electronic gear, multi-axis interpolation
- Supports CAN communication with CANopen for reliable data exchange
- Compact design with structural volume of 172X122X26.3mm
Product Details
LAC200 is widely used in industrial automation projects, suitable for controlling small and medium-sized equipment in the manufacturing industry. This programmable motion controller meets the diverse needs of multi-scenario process applications, including lithium battery production, packaging machinery, cold bending forming and textile printing.
| TYPE | Specification | Parameter |
| CPU | ARM | Dominant frequency 1.2GHz |
|
COMMUNICATION PORT |
EtherCAT | 1 channel EtherCAT mainstation |
| EtherNet | 1 channel 1000M communication rate | |
| RS485 | 1 channel Modbus-RTU mainstation | |
| Can | 1 channel CanOpen main station | |
| Input ports | NPN | 23 ports |
| Output ports | NPN | 16 ports |
| Analog quantity | AD/DA | 2 channel analog input 1 channel analog output, current type output |
| Axis | EtherCAT | Max 32 axis |
| IO expansion | EtherCAT | Max 32 axis |
| Expansion capability | EtherCAT | Max 128 sub-station |
| Programm method | IEC61131-3 | ST、SFC、FBD、CFC、LD and IL Six programming languages |
| Power-off hold | 32KB | |
| Formula Capacity | 64M | |
| RAM | 512M | |
| Storage space | 1G |
