Pulse Three Six Axis Injection Molding Robot Control System

Full closed-loop control, stable system architecture, and stable operation; 3-6 axis pulse control, photoelectric isolation, strong anti-interference

Category Tags ,
Manual download
Get a quote

Product Details

》Full closed-loop control, stable system architecture, and stable operation
》3-6 axis pulse control, photoelectric isolation, strong anti-interference
》High operational efficiency, suitable for general high-speed machine applications
》Strong flexibility, can be paired with any pulse type servo driver
For standard three to five axis universal models, it is flexible to use and customers can configure pulse drivers according to their own needs

Classification Founctional items Pulse control system for  injection moulding manipulator




Product configuration

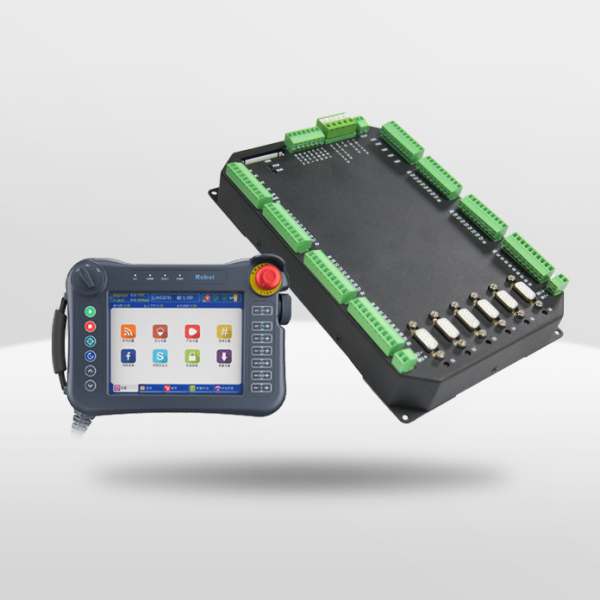

 Form HT0804/0806 Teach pendant+CIMP06-2 mainboard+AIMC20 IO board（optional)
Switching power supply 150W-24V
Cables 12-core 5-meter aviation plug shielded connection cable; 1.2-meter aviation plug shielded adapter cable
Accessories Injection molding system manual, buzzer HYD-24V, iron double hook














System information

 Storage Flash:4GB
Display 8-inch TFT color screen, resolution ratio 800*600
Keyboard Physical membrane buttons, key's life of 100,000 times
Communication of teach pendant RS422 communication
Communication of IO board CAN bus communication
Main board network interface RS485 communication
 Switch input of mainboard 29 channels of universal input + 7 channels of origin input(Optocoupler isolation, active low level, input current 5mA)
 Switch output of mainboard 16 transistor outputs (NPN type, optocoupler isolation, active low level, output current 500mA) + 5 relay outputs (normally open single contact, 220V/5A)
 Switch input of IO board 16channels
(Optocoupler isolation, active low level, input current 5mA)
 Switch output of IO board 16 transistor outputs
(NPN type, optocoupler isolation, active low level, output current 500mA)
Languages Support more than 8 languages
Alarm analysis Two intelligent alarm tips can help users analyze alarm problems (yellow alarm is warning information, red alarm is machine fault information)
Update Through the teach pendant, USB port upgrade software, you can brush the custom LOGO through the USB port
Control system Pulse+direction
Arm Supports dual-arm function, or select main and sub-arms separately
